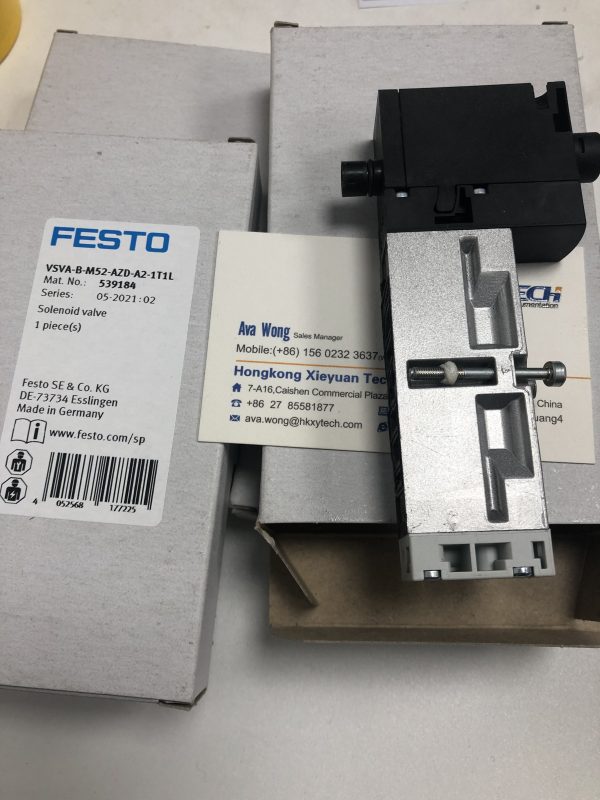

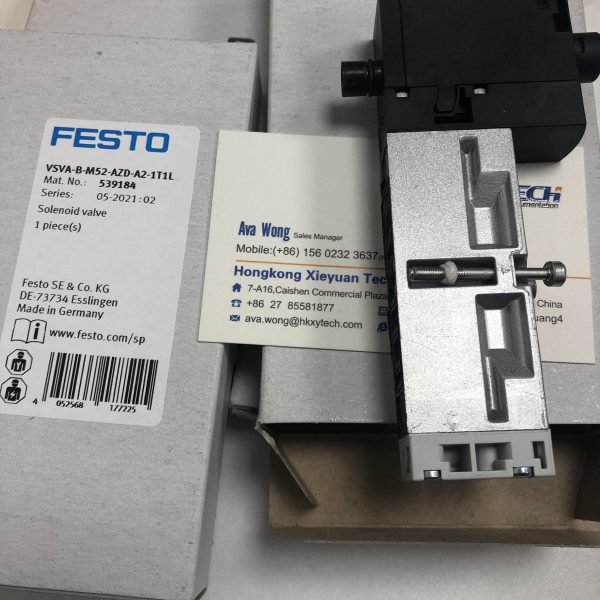

Festo 539184 VSVA-B-M52-AZD-A2-1T1L Air solenoid valve

Valve function
5/2-way, monostable
Type of actuation
Electric
Construction width
18 mm
Standard nominal flow rate
550 l/min
pneumatic working port
Sub-base size 18 mm to ISO 15407-1
Sub-base size 02 to VDMA 24563
G1/8
Operating voltage
24V DC
Operating pressure
-0.09 MPa … 1 MPa
Operating pressure
-0.9 bar … 10 bar
Design
Piston gate valve
Type of reset
Pneumatic spring
Approval
c UL us – Recognized (OL)
Degree of protection
IP65
NEMA 4
Exhaust-air function
With flow control option
Via throttle plate
Via individual sub-base
Sealing principle
Soft
Mounting position
optional
Manual override
Detenting
Non-detenting
Covered
Type of piloting
Pilot actuated
Pilot air supply
External
Internal
Flow direction
optional
Symbol
00991050
lap
Positive overlap
Signal status display
LED
Pilot pressure
0.3 MPa … 1 MPa
Pilot pressure
3 bar … 10 bar
Flow rate of valve
750 l/min
Flow rate of valve on individual sub-base
600 l/min
Valve flow rate, pneumatically linked, flow optimized
700 l/min
Flow rate of pneumatically interlinked valve
550 l/min
Switching time off
28 ms
Switching time on
22 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1500 µs
Max. negative test pulse with 1 signal
800 µs
Max. current consumption
72 mA
Nominal operating voltage DC
24 V
Characteristic coil data
24 V DC: 1.6 W
Immunity to surge
2.5 kV
Pollution degree
3
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC
0 – No corrosion stress
Relative air humidity
0 – 90%
Pilot medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C … 50 °C
Product weight
163 g
Electrical connection
Plug-in
To ISO 15407-2
Type of mounting
On sub-base
Pilot air port 12/14
Sub-base size 18 mm to ISO 15407-2
Pilot exhaust port 82/84
Ducted
Not ducted as per standard
Either:
Pneumatic connection, port 1
Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 2
Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 3
Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 4
Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 5
Sub-base size 18 mm to ISO 15407-2
Note on materials
RoHS-compliant
Material seals
FPM
HNBR
NBR
Material housing
Die-cast aluminium
PA
Material screws
Galvanised steel
