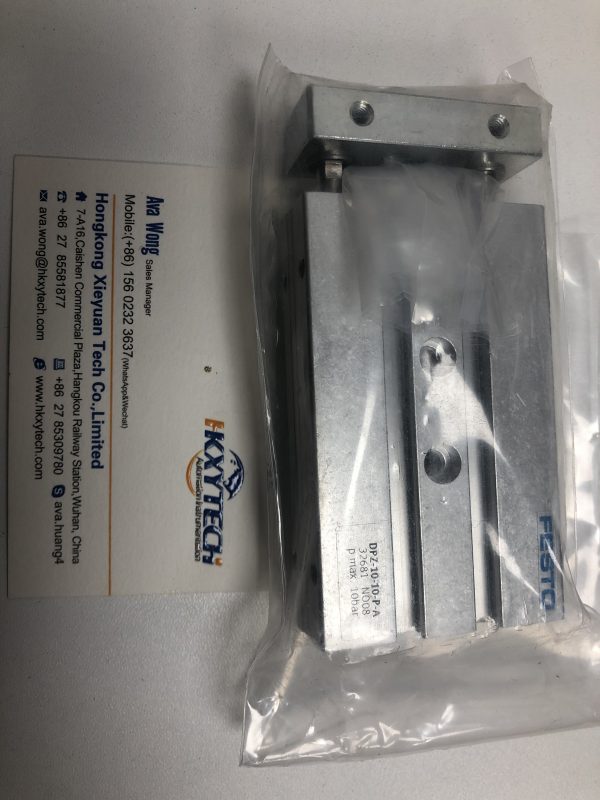

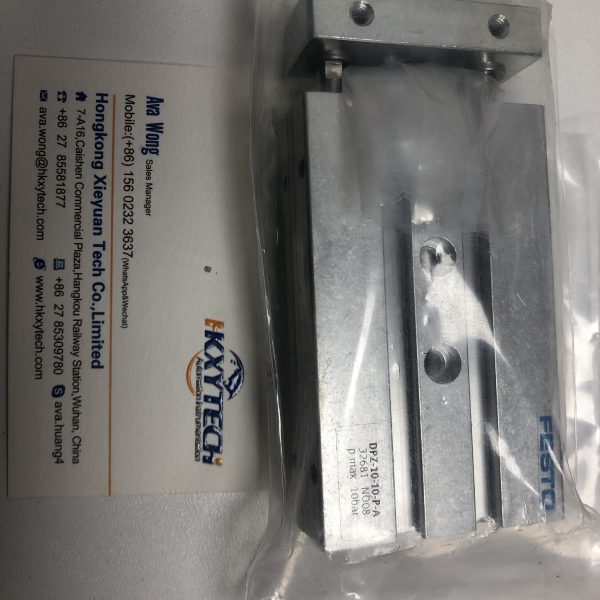

Festo 32681 DPZ-10-10-P-A Twin cylinder

Distance from centre of gravity of load to yoke plate xs
0 mm
Stroke
10 mm
Adjustable end-position range/length
10 mm
Piston diameter
10 mm
Operating mode, drive unit
Yoke
Cushioning
Elastic cushioning rings/plates at both ends
Mounting position
optional
Guide
Plain-bearing guide
Design
Guidance
Position detection
Via proximity switch
Symbol
00991249
Operating pressure
0.25 MPa … 1 MPa
Operating pressure
2.5 bar … 10 bar
Mode of operation
Double-acting
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
2 – Moderate corrosion stress
Ambient temperature
-20 °C … 80 °C
Impact energy in end positions
0.08 J
Max. effective load dependent upon stroke at defined distance xs
8 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
60 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
94 N
alternative connections
See product drawing
Pneumatic connection
M5
Material cover
Wrought aluminium alloy
Material seals
NBR
Material housing
Wrought aluminium alloy
Material piston rod
High-alloy stainless steel
