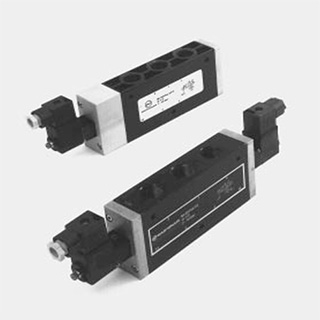

M/20152/22/MDZ83J Valves Solenoid Actuated Norgren
M/20152/22/MDZ83J Valves Solenoid Actuated Norgren
$247.00
M/20152/22/MDZ83J Valves Solenoid Actuated Norgren
Technical Data:
Medium:Compressed air, filtered, lubricated and non-lubricated
Operation:Spool valve, indirectly actuated
Mounting:Through holes in valve body
Port Size:G1/2
Operating Pressure:
1 – 10 bar M/20154/22, M/20154/23, M/20154/123
0 – 930 mbar vacuum M/20154/22, M/20154/23
2,5 – 10 bar M/20154/172
2,8 – 10 bar M/20154/6123, M/20254/6123
Flow (to CETOP RP50P):
Conductance dm3/s/bar 13,28
Critical pressure ratio 0,44Cv 3,69
Operating Temperature:+5˚C to +50˚C
HONGKONG XIEYUAN TECH CO., LIMITED ava.wong@hkxytech.com Mob/WhatsApp: 86-15602323637
M/20152/22/MDZ83J Valves Solenoid Actuated Norgren
- General Information
- Technical Data:
Medium:Compressed air, filtered, lubricated and non-lubricated
Operation:Spool valve, indirectly actuated
Mounting:Through holes in valve body
Port Size:G1/2
Operating Pressure:
1 – 10 bar M/20154/22, M/20154/23, M/20154/123
0 – 930 mbar vacuum M/20154/22, M/20154/23
2,5 – 10 bar M/20154/172
2,8 – 10 bar M/20154/6123, M/20254/6123
Flow (to CETOP RP50P):
Conductance dm3/s/bar 13,28
Critical pressure ratio 0,44Cv 3,69
Operating Temperature:+5˚C to +50˚C
HONGKONG XIEYUAN TECH CO., LIMITED
ava.wong@hkxytech.com
Mob/WhatsApp: 86-15602323637
