Honeywell RAEGuard 2 PID Transmitter Fixed Photoionization Detector H-D03-0010-000

Honeywell RAEGuard 2 PID Transmitter Fixed Photoionization Detector H-D03-0010-000

$2,999.00

Price negotiable

H-D03-0010-000—Kit, RAEGuard 2 PID, UL, 0.1 – 1000 ppm isobutylene equivalent

Compare

Share this product

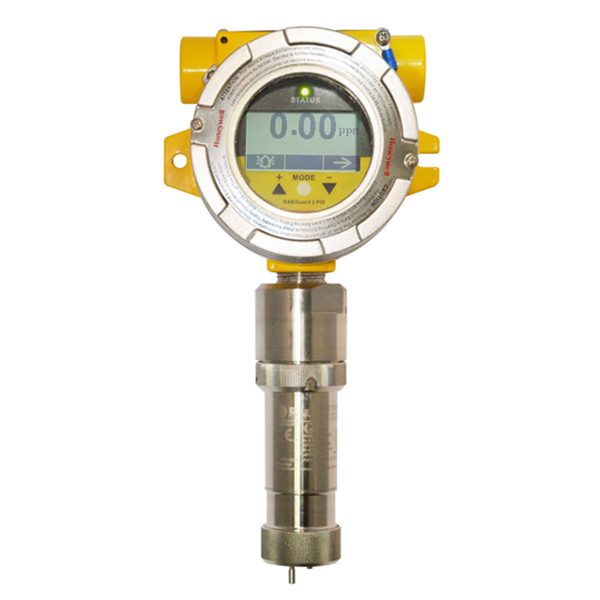

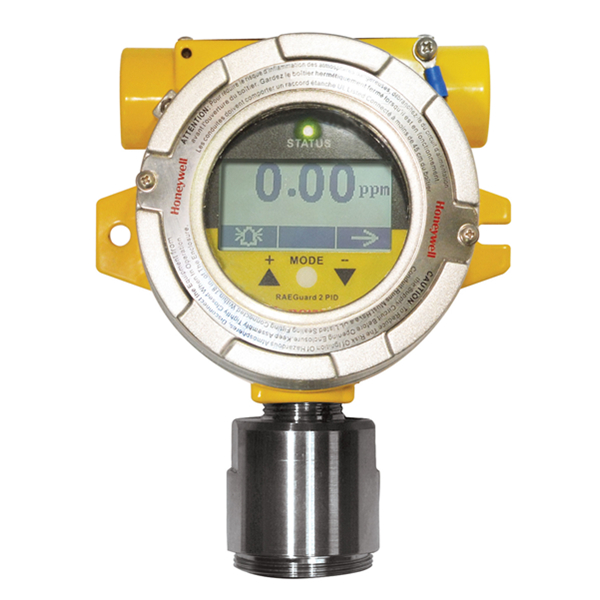

Honeywell RAEGuard 2 PID Transmitter H-D03-0010-000



The RAEGuard 2 PID is a fixed photoionization detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analog (4- 20mA) three-wire signal output, and RS-485 Modbus digital signal output.

Calibration and maintenance have been greatly simplified as the digital PID sensor module can be easily removed in hazardous locations without tools for calibration or maintenance.

INSTRUMENT

All kits include: RAEGuard 2 fixed head. DigiPID sensor module, magnetic key, hex service tool, spare sensor, 5 pack of external water trap filters, 5 pack of internal dust filters, user manual

Kits
H-D03-0010-000—Kit, RAEGuard 2 PID, UL, 0.1 – 1000 ppm isobutylene equivalent

Features & Benefits

Faster response time
– Thanks to the sample flow-through design Reduce maintenance cost
– Easy to remove sensor module in hazardous locations without using of tools No false alarms
– Large UV lamp and better sealing allows greater sensitivity, faster speed of response and better resolution

Quick Specs

  • Digital Smart Sensor Technology
  • Detection range 0.01 to 100 ppm, 0.1 to 1000 ppm, or 1 to 1000 ppm
  • Operates on 10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output, and RS-
  • 485 Modbus digital signal output
  • Graphic display and LED light status indicator for fault and alarm conditions

Product Overview

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analog (4-20mA) three-wire signal output and RS-485 Modbus digital signal output. Calibration and maintenance have been greatly simplified as the digital PID module can be easily removed in hazardous locations for calibration or maintenance.

The RAEGuard 2 PID has a graphic display and local sound alarm and LED light status indicator. In addition, Low, High, and Fault relays can be configured to trigger external alarms or process controls. A magnetic key interface enables the detector to be calibrated and operational parameters adjusted with the explosion-proof enclosure in place





Additional information

Weight4000 g
Detection range

0.01 to 100 ppm, 0.1 to 1000 ppm, or 1 to 1000 ppm

Operates

10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output, and RS-485 Modbus digital signal output
